Experiencing a liner failure during bulk material handling is rarely a minor inconvenience. These events quickly escalate into critical operational bottlenecks causing unexpected facility downtime, severe material contamination, and serious operator safety hazards. When material exits the discharge spout, the rapid flow pulls heavily on the inner plastic layer. If unsupported, this inner layer detaches or stretches downward, completely blocking the product flow and halting production lines.
Resolving a bulk bag liner discharge problem requires methodical troubleshooting and careful analysis. You must diagnose whether the root cause lies within the bag design, your material handling equipment, or operator handling protocols. This guide explores the physical mechanics behind liner failures. You will learn how to systematically engineer them out of your process by evaluating targeted equipment upgrades alongside specialized bag-level features.

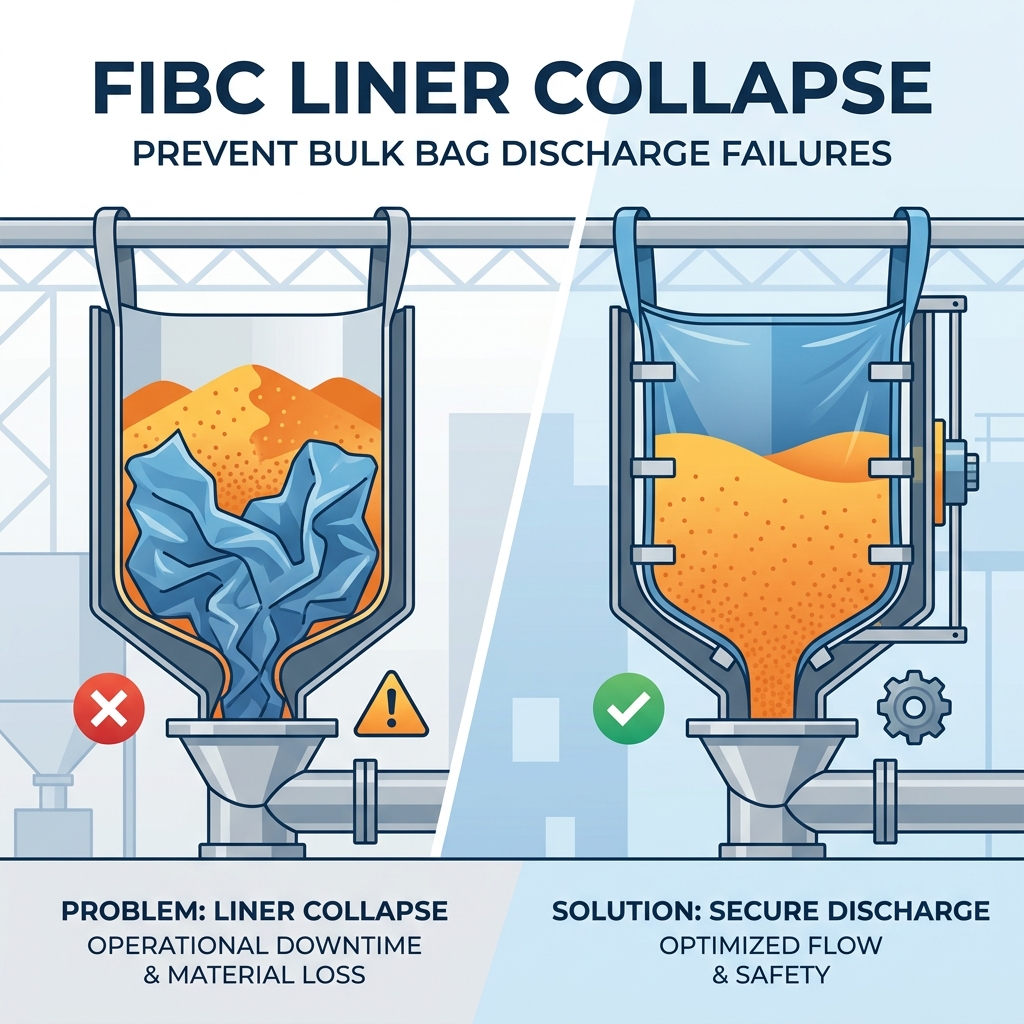

Root Causes: Liner collapse is typically driven by improper venting, poor fibc liner alignment, or utilizing standard loosely inserted liners for high-flow applications.
Business Impact: Collapsed liners cause material retention (product loss), bridging, and increased labor hours spent manually clearing blockages.
Evaluation Criteria: Choosing the right solution requires weighing upfront bag costs (e.g., glued or tabbed liners) against long-term operational efficiency and equipment upgrades (e.g., bag tensioners).
Next Steps: Facilities must audit their discharge environment, material characteristics, and existing unloader setups before committing to a new FIBC specification.
To solve liner failures, we first need to understand the underlying physics of discharge operations. Rapid material flow naturally creates negative pressure inside the flexible container. This powerful vacuum effect aggressively pulls loosely fitted plastic down into the discharge spout. Without proper equalization of air pressure, the inner plastic acts like a sail catching wind, pulling away from the outer polypropylene shell.
Material characteristics play a massive role in exacerbating this vacuum effect. Fine, aerated powders fluidize easily. As they rush out of the spout, they essentially suck the inner plastic downward. Coarse granules behave differently but cause similar issues. Granules create high friction against the liner walls. As heavy granules drop, they physically drag the unsupported plastic along due to sheer mechanical force.
Operators also introduce significant variables into the process. Incorrect bag hanging often sets the stage for failure before unloading even begins. Poor fibc liner alignment during the initial filling process creates excess slack. Operators might fail to inflate the bag properly before filling, leaving the inner layer bunched. Once unloading begins, this pre-existing slack dramatically increases the risk of the plastic slipping directly into the narrow spout opening.
Facilities need strict verification metrics to identify when a collapse occurs versus a standard material bridge. Operators can visually identify a collapse using specific indicators:
Sudden flow stoppage: Material ceases flowing completely without any visible rat-holing or bridging in the main product column.
Visual extrusion: Operators can physically see excess plastic material protruding into the downstream rotary valve or feeder equipment.
Spout bunching: The lower access tie feels unnaturally thick or blocked by folded layers of plastic when manipulated from the outside.
Isolating the variable saves time, reduces frustration, and preserves capital. Facility managers must implement a diagnostic framework to determine if the issue stems from the consumable (the bag itself) or the capital equipment (the unloader station). Blaming the bag supplier is common, but worn-out machinery frequently drives the failure.
Equipment shortfalls frequently ruin even the most robust bag designs. Lack of proper bag tensioning equipment acts as a primary culprit in older facilities. Modern pneumatic cylinders pull the bag upward as it loses mass, keeping the outer fabric and inner plastic completely taut. Without them, the bag slumps downward as material exits. This slumping forces the inner layer to fold in on itself and choke the spout.
The absence of dedicated spout clamping mechanisms also causes massive trouble. These specialized mechanisms secure the inner plastic independently of the outer fabric. When a facility relies only on gravity and untying the outer spout, nothing stops the inner layer from falling through.
Conversely, inherent bag design flaws will undermine excellent handling equipment. Using basic form-fit or tube liners without attachment points guarantees failure in high-volume, rapid-discharge applications. These basic inserts rely entirely on the product weight to hold them in place. Once the product leaves, the insert falls.
Improper sizing creates another prevalent hazard. Manufacturers sometimes make the inner layer slightly longer than the outer polypropylene bag. This excess material inevitably bunches at the spout during discharge. As material flows over these bunched folds, it pulls the extra plastic directly into the flow path, creating an instant blockage.
Different industrial applications demand different attachment methods. Choosing the correct specification requires understanding the physical trade-offs of each design. Let's evaluate the primary solutions available on the market.
Loosely inserted liners offer a highly basic, cost-effective solution. They remain viable only for low-value, slow-discharge applications where operators can carefully monitor the flow. Using them in automated, high-speed processes introduces a severe risk of a fibc liner collapse.
Glued liners provide a noticeable step up in stability. Industrial adhesive bonds the plastic to the outer fabric, effectively preventing downward movement. However, they carry specific environmental risks. The glue can crystallize and fail under extreme temperature fluctuations. Furthermore, incompatible chemical exposure from the stored product might degrade the adhesive over long storage periods, causing the bond to shear during unloading.
Sewn or tabbed liners typically utilize robust 8-point attachments for superior hold. Manufacturers mechanically secure the plastic at multiple points inside the outer bag using heavy-duty stitching. This design proves highly reliable for complete, rapid discharge. The trade-off involves a higher per-bag cost. Additionally, they introduce a slightly increased risk of pinhole contamination at the sewing points if the manufacturer does not properly seal or tape the seams.
Baffled liners maintain bag shape beautifully. Internal panels prevent the plastic from sagging into the center of the material column. We evaluate them as the best option for maintaining rigid structure during transport, maximizing shipping space, and ensuring a smooth, uninterrupted discharge.
FIBC Liner Attachment Comparison
Attachment Type | Primary Pros | Notable Cons / Risks | Best Use Case |
|---|---|---|---|
Loosely Inserted | Lowest upfront cost; easy to manufacture. | Highest collapse risk; requires manual flow monitoring. | Low-value goods; slow, manually controlled discharge. |
Glued | Prevents slipping; no sewing pinholes. | Adhesive can fail in extreme temperatures or chemical exposure. | Mid-speed discharge; stable climate environments. |
Sewn / Tabbed (8-Point) | Mechanically secure; highly reliable under heavy load. | Higher cost; potential pinhole contamination at seams. | High-speed automated unloading; heavy powders. |
Baffled | Maintains rigid square shape; prevents center sagging. | Most expensive; complex manufacturing process. | Premium products; maximizing shipping container space. |
Relying solely on bag modifications is not always the most practical strategy. Upgrading unloading equipment often provides a more permanent, systemic safeguard against operational failures.
Pneumatic bag tensioners fundamentally change the discharge dynamics. They apply constant, automated upward pressure as the bag loses mass. This constant upward force prevents the plastic from necking down into the spout. The tension keeps the inner walls flush against the outer fabric throughout the entire emptying cycle.
Liner tensioning clamps offer immense operational safety benefits. These devices mechanically grip the inner plastic at the access door before operators even open the main spout tie. Securing the plastic first ensures it absolutely cannot slide down once the heavy material begins moving. It removes the human error element from the equation.
Flow aids, such as pneumatic massagers and mechanical agitators, also help significantly. External flow aids reduce the friction between the cohesive product and the plastic walls. By breaking up compacted, bridged material gently from the outside, they minimize the harsh downward pull on the plastic. They encourage material to flow down the center channel rather than dragging along the sides.
We must consider the financial balance between these strategies. Compare the CapEx of new equipment upgrades versus the ongoing OpEx of constantly buying more expensive, tabbed bags. If your facility processes thousands of bags annually, investing in robust tensioning equipment yields much better long-term efficiency. It allows you to safely utilize cheaper standard designs without risking downtime.
Even the best engineering specifications fail if the vendor lacks strict quality control. Procurement teams must navigate implementation risks carefully to ensure consistent performance across multiple production batches.
Requesting physical sample runs is non-negotiable. Procurement should never buy large bulk orders without first conducting a 10-bag dynamic test run. You must test these samples using your actual plant material and your specific unloaders. Static sizing tests tell you nothing about how the plastic behaves under a 2,000-pound dynamic load.
Compliance and safety standards heavily dictate vendor choices in sensitive manufacturing sectors. You must ensure glued or sewn attachments do not introduce foreign object debris (FOD) risks. Stray threads or dried glue flakes ruining a batch is catastrophic. Furthermore, the construction must not violate strict food-grade or pharma-grade compliance standards, including FDA regulations or BRCGS guidelines.
Supplier transparency separates reliable partners from risky brokers. You need to confidently assess if an FIBC supplier actually controls their own manufacturing process. Controlling the production floor remains crucial for maintaining consistent sizing and attachment quality. Consider these vetting steps:
Audit the supplier's cleanroom certifications to verify their compliance claims.
Request technical documentation detailing the exact adhesive temperature tolerances used in glued applications.
Verify the dimensional tolerances specifically for the inner layer versus the outer shell to prevent spout bunching.
Ask for historical case studies where they resolved flow issues for similar materials.
Fixing a collapsed inner layer is a systemic evaluation, not a quick patch. It strictly requires aligning your bag specifications with your specific unloader capabilities and your product's unique material flow properties. Slapping a more expensive bag onto a worn-out unloader rarely solves the root issue permanently.
Apply clear shortlisting logic moving forward. If capital equipment budgets are tight, immediately transition to tabbed or glued configurations to solve your immediate blockages. If your bag processing volume is massive, invest heavily in unloader tensioning equipment. This capital investment allows the safe use of cheaper standard configurations, balancing your operational budget over time.
Document your specific discharge failure rate today. Track the exact minutes lost to clearing blockages. Consult with an FIBC application engineer for a comprehensive site audit or sample testing to properly engineer the optimal solution for your facility.
A: Yes. Static cling can cause the liner to adhere to the material rather than the outer bag, pulling it downward during discharge. Type L1/L2 anti-static liners may be required to safely dissipate this charge, preventing the plastic from clinging to the exiting product.
A: No. Reaching into a suspended bulk bag or an active discharge spout presents a severe crush hazard and strictly violates safe handling protocols. All upward tensioning must be handled by mechanical clamps, pneumatic cylinders, or built-in attachment tabs.
A: While form-fit liners match the bag's dimensions better and reduce spout bunching, they can still collapse. If they are not mechanically or chemically attached to the outer bag, rapid high-speed discharge will eventually pull them down.
