Two FIBC bags can have the same nominal dimensions, Safe Working Load, and fabric weight but behave very differently after filling. One may bulge beyond the pallet, another may hold a more defined rectangular footprint, and a third may retain product around internal panels during discharge.
These differences often begin with the body construction.

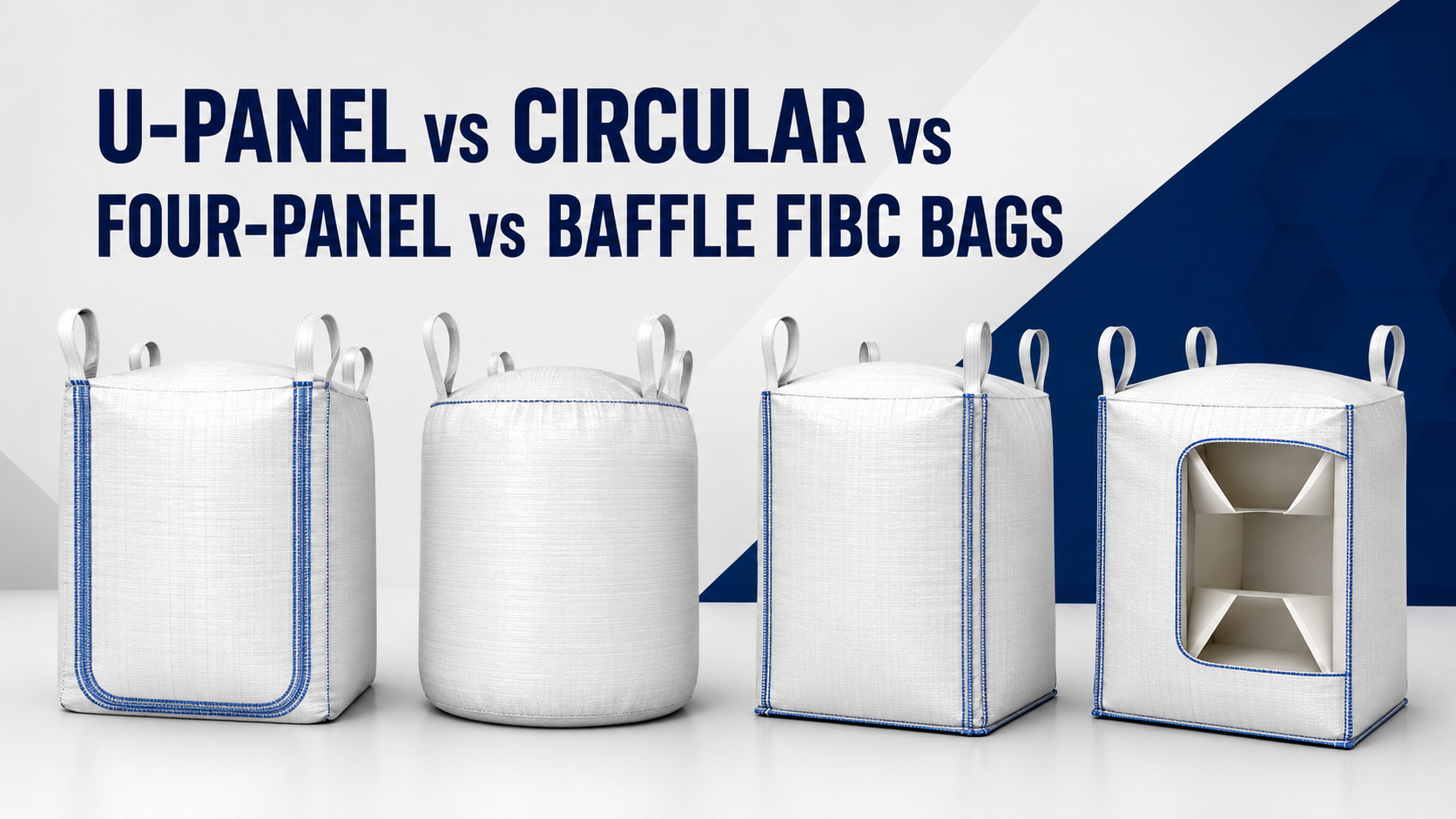

U-panel, circular, four-panel, and baffle FIBCs are frequently presented as four competing bag types. That comparison needs one important clarification: U-panel, circular, and four-panel describe how the main bag body is formed, while a baffle is an internal shape-control feature added to a base construction.
A baffled bag may therefore use a circular or four-panel body, and some engineered designs may combine baffles with a U-panel-style body. “Baffle” does not identify the complete construction on its own.
The right choice is not simply the strongest-looking or most expensive option. Buyers should compare how each construction affects:
Filled shape and footprint
Product containment
Filling and deaeration
Discharge behavior
Liner installation
Hygiene and cleanability
Pallet and container utilization
Manufacturing complexity
Complete-bag test requirements
This guide explains those differences and provides a practical method for selecting the appropriate construction for a specific product and handling process.
Construction | How the Main Body Is Formed | Typical Filled Shape | Main Advantage | Main Trade-Off |
|---|---|---|---|---|
U-panel | One continuous panel forms the bottom and two opposite sides; two additional side panels complete the body | Moderately square but may bulge | Balanced combination of durability, versatility, and cost | More body seams than a circular bag and less shape control than a baffled design |
Circular | Tubular fabric forms all four sides without vertical side seams | Rounded or square with noticeable sidewall bulging | Fewer vertical body seams and relatively simple construction | Less dimensional control after filling |
Four-panel | Four separate side panels are sewn together and attached to a separate bottom | More defined square or rectangular profile | Better panel definition and printing surfaces | More seams, sewing operations, and potential sift paths |
Baffle | Internal panels restrain the corners of a circular, four-panel, or other engineered body | Square or rectangular with controlled bulging | Improved footprint control and space utilization | More internal components, seams, cost, and possible product-retention points |
These are general tendencies. Fabric properties, bag dimensions, seams, lifting loops, reinforcements, top and bottom construction, liner, filling conditions, and product behavior can change the result.
The body style is only one part of an FIBC specification.
In all four cases, FIBC bags may still require a separate decision about:
Type A, B, C, or D electrostatic classification
Coated or uncoated fabric
Fabric GSM and tensile requirements
Safe Working Load
Safety factor and service category
Four-loop, cross-corner, stevedore-strap, or other lifting design
Open top, duffle top, or filling spout
Flat bottom, discharge spout, or full-open discharge
Standard, sift-resistant, or covered seams
Loose, tabbed, glued, or form-fit liner
Food-contact, hygiene, or dangerous-goods requirements
A circular bag is not automatically stronger, more hygienic, or more sift-resistant because it has fewer vertical seams. A four-panel bag is not automatically safe to stack because it looks squarer. A baffle bag does not receive a higher SWL merely because it uses more internal fabric.
The complete design must be specified and validated as a system.
A U-panel FIBC uses one long piece of woven fabric to form two opposite sides and the bottom of the bag. Two separate side panels are then sewn to this main panel to complete the body.
This creates a recognizable U-shaped load path through the main fabric.
Compared with a circular bag, the additional panel seams help define the corners and give the filled bag a more rectangular appearance. Compared with a four-panel bag, the continuous main panel eliminates the need for a completely separate bottom panel.
Buyers can review typical U-panel bulk bag constructions when assessing how this design can be combined with different tops, outlets, loops, coatings, and liners.
A U-panel design generally maintains a more defined footprint than a conventional unbaffled circular bag. The side panels and their seams create clearer corners, although the walls can still expand under product pressure.
It offers a practical middle ground where perfect cube retention is not required.
U-panel bags can be configured for a wide range of dry bulk products, including:
Minerals
Fertilizers
Chemicals
Cementitious products
Resins
Grains
Seeds
Food ingredients
The same basic body can be combined with coated fabric, liners, sift-resistant seams, different loop arrangements, and multiple filling or discharge options.
Because the main panel passes beneath the bag and continues up two sides, the bottom is integrated into the principal body component. This can simplify the material layout and create an efficient load-transfer path when the fabric, seams, loops, and reinforcements are engineered together.
It does not eliminate bottom-area seams completely. The two additional side panels still need to be joined to the main U-panel.
For many general industrial applications, U-panel construction provides adequate squareness without the additional material and sewing required for internal baffles.
However, cost depends on the complete design. A coated, sift-resistant, lined, or heavily reinforced U-panel bag can cost more than a simpler four-panel or circular alternative.
The construction defines the corners better than a plain tubular body, but it does not prevent the flat panels from bowing outward.
Actual bulging depends on:
Bulk density
Internal pressure
Fill height
Product flowability
Fabric elongation
Bag width-to-height ratio
Filling method
Vibration or densification
Storage duration
If a fixed external footprint is critical, an unbaffled U-panel bag may not provide sufficient control.
The separate side panels introduce sewn joints. For fine powders, these seams may require filler cord, felt, tape, covered construction, or another validated sift-resistant method.
Coated fabric alone does not seal needle holes.
A basic tube liner can be used in some U-panel bags, but it may fold, wrinkle, or enter the discharge opening unevenly. A form-fit liner may provide better control where filling, discharge, or product protection is sensitive.
Consider a U-panel design when:
General-purpose performance is required
Moderate shape retention is sufficient
The product is powder, granule, pellet, or small aggregate
A familiar and widely configurable construction is preferred
The pallet or container allows some sidewall expansion
Internal baffles would add unnecessary complexity
A balance between unit cost and dimensional stability is important
The final selection should still be based on a filled-bag trial and complete design evidence.
A circular FIBC—also called a tubular FIBC—uses body fabric woven as a continuous tube on a circular loom. The tube is cut to the required bag height, so the body has no vertical side seams.
“Circular” describes the fabric-production method, not necessarily the final footprint. An empty tubular bag can be folded flat, and a filled bag may form a rounded square depending on the product, loop placement, base dimensions, and filling process.
Examples of circular bulk bags show how tubular bodies can be combined with cross-corner loops, filling spouts, discharge spouts, coatings, and liners.
Eliminating the vertical side-panel seams reduces the number of external sewn joints in the bag body.
This can be useful for fine powders because every body seam represents a potential sifting path. However, a circular bag still contains other seams and penetrations, including:
Bottom attachment
Top attachment
Filling-spout seams
Discharge-spout seams
Lifting-loop stitching
Reinforcement stitching
Document-pouch stitching
Liner-attachment points
Circular should therefore be described as having no vertical body seams—not as a seamless or leak-proof bag.
The tubular body can reduce panel cutting and assembly compared with constructions that require several separate side panels.
This may support competitive production costs, but it does not guarantee the lowest finished-bag price. Fabric grade, coating, loops, sift resistance, liners, testing, and order quantity may have a larger effect.
Cross-corner loops are commonly used with circular bags. They are sewn across the corners created when the tubular body is laid flat, making the loops easier for forklift operators to access in many handling arrangements.
Loop design must still match the lifting equipment and approved handling method.
For fine, free-flowing materials, removing the vertical side seams may help reduce one group of potential leakage paths.
This advantage should be combined with an evaluation of fabric permeability, coating, top and bottom seams, closures, filling pressure, liner requirements, and acceptable external residue.
The tubular body does not have sewn vertical corners to restrain its shape. Product pressure can push the sidewalls outward, particularly near the middle of the filled bag.
The bag may occupy more floor, pallet, rack, or container space than its nominal flat dimensions suggest.
Printing can be applied to tubular fabric, but the filled surface may curve or distort more than a defined four-panel face. This can affect the appearance and readability of large logos, barcodes, regulatory marks, or detailed instructions.
A circular bag specified as 90 × 90 cm should not automatically be assumed to remain within that footprint after filling. Nominal dimensions, empty lay-flat measurements, and actual filled dimensions are different controls.
Buyers should define:
Maximum filled width
Maximum filled depth
Permitted bulge
Measurement height
Product used for the test
Fill weight
Densification method
Time between filling and measurement
Fewer vertical seams do not compensate for unsuitable fabric, poor bottom construction, weak loop attachment, uncontrolled stitching, or an inadequate liner.
The complete bag remains only as reliable as its most highly stressed or least controlled component.
Consider circular construction when:
Reducing vertical side seams has a clear containment benefit
The product is free-flowing
Some sidewall bulging is acceptable
Cross-corner loop handling is preferred
The pallet or transport cell can accommodate a rounded footprint
A relatively simple body construction is desirable
Shape efficiency is less important than reducing body-panel joints
Circular bags should not be selected for fine powder solely on the assumption that “tubular” means sift-proof.
A four-panel FIBC uses four separate pieces of fabric for the vertical sides and another panel for the bottom. The side panels are joined by vertical seams, creating four defined corners.
A typical four-panel FIBC bag illustrates this panel arrangement, although the top, bottom, loops, coating, seams, and liner can all be changed for a specific application.
The four vertical corner seams help the bag resist the tendency to become completely round after filling. Of the three unbaffled base constructions, four-panel bags generally provide the clearest panel definition.
They can still bulge between the seams. Four-panel does not mean rigid or perfectly cubic.
Individual panels can be specified, cut, printed, inspected, or reinforced according to their function.
For example, a design may require:
Different printing on each face
Reinforcement on selected panels
A document pouch in a controlled position
Orientation marks for automated handling
Specific warp direction relative to the bag
Different top, bottom, or body fabric grades
Any variation must be engineered carefully so the complete load path remains controlled.
Four separately defined faces can improve the placement of:
Product identification
Handling instructions
Hazard communication
Barcodes
Traceability information
Multicolor branding
Filled-bag distortion must still be considered, especially if scanners require a consistent label or barcode plane.
A four-panel construction can be designed with square or rectangular base dimensions. This can help match:
Non-square pallets
Filling frames
Warehouse cells
Container loading patterns
Product-specific volume targets
Four vertical panel joints and the bottom attachment create multiple sewn paths that must be controlled.
For fine powders, seam construction can be more important than the number of panels. Buyers should define acceptable leakage and the method used to achieve it rather than asking only for “sift-proof stitching.”
Separate panels require additional assembly and inspection. More operations can increase manufacturing time, labor, and the number of variables that must be controlled.
This does not make the design unreliable. It means panel dimensions, seam allowance, stitch density, thread, cutting accuracy, and operator consistency require proper process control.
Four-panel bags may cost more than a comparable circular construction because of additional components and sewing. The actual difference may be small or reversed when other features dominate the quotation.
Unit price should be compared only after confirming that the constructions have equivalent:
Fabric specifications
Coating
Seams
Loops
Reinforcements
Top and bottom designs
Liners
Testing
Packing quantities
Consider four-panel construction when:
A more defined square or rectangular body is required
Printing location and presentation are important
The bag must match a specific pallet or filling frame
Different faces require controlled features
Moderate-to-good shape retention is needed without internal baffles
The additional external seams can be properly controlled
Product flow does not justify the complexity of a baffled interior
A baffle FIBC contains internal fabric panels that connect the adjacent sides near the corners. These panels restrain outward expansion and help the bag retain a square or rectangular profile.
The baffles contain openings that allow the product to move into the corners during filling and return toward the outlet during discharge. The size, number, shape, position, and edge treatment of these openings can affect both product flow and baffle strength.
Baffles are commonly added to four-panel or circular bodies. Depending on the manufacturer and validated design, other base constructions may also be used.
This is why baffle bags should be specified by both the base body style and the baffle design. “Q-bag” or “baffle FIBC” alone does not define the complete construction.
The primary purpose of the baffles is to limit sidewall bulging. A more controlled footprint can improve compatibility with:
Pallets
Racking
Filling stations
Truck bodies
Shipping containers
Warehouse layouts
Automated handling cells
The practical benefit should be verified using actual filled dimensions rather than a general claim about space savings.
Reducing uncontrolled bulging may allow the buyer to use available transport or storage space more efficiently.
This does not mean the bag can exceed its SWL. The benefit may instead be:
Carrying the required volume within a smaller external footprint
Maintaining container loading lanes
Reducing interference between adjacent bags
Improving pallet overhang control
Achieving a more predictable filled height
A square profile may improve appearance and reduce uneven contact between adjacent bags. It can also help keep the product mass closer to the intended footprint.
However, external shape alone does not prove stability, stackability, or safe lifting performance.
Where bags must fit a fixed filling cage, conveyor envelope, or discharge station, dimensional consistency may be valuable.
Automation suitability also depends on loop presentation, liner behavior, spout position, bag stiffness, and how consistently the product settles.
Baffles add fabric, cut edges, attachment seams, and production operations. These additions can increase:
Bag weight
Unit price
Inspection requirements
Foreign-material control points
Internal product-contact surfaces
Manufacturing complexity
For high-purity or hygiene-sensitive products, the baffle material and attachment method require the same scrutiny as the main body.
Poorly flowing, sticky, moist, fibrous, irregular, or compacting products may remain around baffles or their openings.
Retention risk depends on:
Particle size and shape
Cohesion
Angle of repose
Moisture
Electrostatic attraction
Product compression
Outlet size
Baffle opening geometry
Discharge equipment
Vibration or massage systems
A design that performs well with plastic pellets may not discharge equally well with a cohesive mineral or food powder.
The product must flow through the baffle openings and fill the corner areas. If the openings are unsuitable, the bag may fill unevenly or leave voids.
Aerated powders introduce another concern: internal panels can influence how entrained air moves through the bag. A filling trial may be necessary to check pressure, dust release, settlement time, and final shape.
A loose tube liner may bridge across the baffles, wrinkle, restrict corner filling, or interfere with discharge.
Baffled FIBCs may require:
A form-fit liner
A baffled liner
Controlled attachment points
Defined liner dimensions
Anti-collapse measures
Product-specific filling and discharge trials
The outer bag and liner should be treated as one packaging system.
Consider a baffled design when:
Filled footprint is a critical specification
Container or warehouse space is constrained
Pallet overhang must be minimized
A square presentation is commercially important
The product flows readily through baffle openings
Automated equipment requires dimensional consistency
The extra material and manufacturing complexity produce a measurable logistics benefit
Do not add baffles solely because the design appears more advanced.
A typical order of increasing shape control is:
Circular
U-panel
Four-panel
Baffled construction
This is a general tendency, not a guaranteed ranking. Fabric elongation, bag proportions, product behavior, fill weight, densification, and baffle geometry can change the outcome.
A well-engineered U-panel bag may fit an application better than a poorly proportioned four-panel bag. A baffled design may hold a square footprint but fail to fill completely if the product cannot move through the internal openings.
Circular construction eliminates vertical body seams, giving it a potential advantage where those seams would otherwise be leakage paths.
U-panel and four-panel bags have more external body joints, but suitable seam construction can reduce sifting. Depending on the product, this may include:
Filler cord
Felt
Covered seams
Multiple stitch lines
Coated fabric
A liner
Controlled spout closures
Baffle bags add internal attachment seams. These may not be direct external leakage paths in every construction, but they create additional needle penetrations and areas requiring inspection.
No body style should be described as dust-proof without a defined product, filling condition, and acceptance test.
For free-flowing pellets or granules, all four styles may fill effectively when the inlet and support system are suitable.
Circular and unbaffled panel bags allow the product to expand the body more freely. Baffle bags restrict expansion and direct material through internal openings.
For aerated powders, buyers should evaluate:
Filling rate
Air permeability
Filter or venting arrangement
Bag inflation
Dust collection
Settlement time
Final fill height
Pressure on seams
Liner inflation
The body construction should be tested with the actual filling line whenever the process is sensitive to air release.
The body style does not determine discharge performance by itself. The outlet diameter, outlet length, closure, product flow, bag support, and discharge equipment may be more important.
Baffles introduce additional surfaces that can influence flow toward the outlet. They may be suitable for free-flowing products but require closer evaluation for cohesive or compacting materials.
For products with difficult flow, buyers may need:
A larger outlet
Conical bottom
Full-open discharge
Controlled baffle openings
Vibration or massage
Anti-bridging measures
A low-friction liner
A discharge trial
Circular bags have fewer vertical body seams, which may reduce some internal crevices. That does not automatically make them food- or pharmaceutical-grade.
Four-panel and U-panel bags can also be manufactured for hygiene-sensitive applications when material control, cutting, sewing, cleaning, inspection, traceability, and contamination prevention are properly managed.
Baffle bags have more internal fabric and stitch lines. For high-purity products, buyers should assess whether those surfaces create unacceptable retention or foreign-material risks.
Hygiene performance depends on the facility and control system as well as the panel construction.
Four-panel bags generally provide the most clearly defined printing faces. U-panel bags also provide recognizable side panels, while circular bags may show more distortion after filling.
Baffle bags can provide a flatter filled surface, but print position should still be confirmed on a production sample.
If barcode scanning is required, define:
Barcode type and size
Print contrast
Quiet zone
Panel location
Expected curvature
Scanning distance
Filled-bag orientation
Verification method
Baffles add material and folds, so they may increase empty-bag weight and bale volume.
Four-panel bags also contain more cut components than circular bags. However, the actual empty-bag packing quantity depends on the complete construction, including liners, loops, tops, bottoms, reinforcements, coatings, and document pouches.
A design that costs more to ship as an empty bag may still reduce filled-product logistics costs if it improves container utilization. Both sides of the comparison should be calculated.
Application Requirement | Likely Starting Point | Reason for Considering It | What Must Still Be Verified |
|---|---|---|---|
General industrial powder or granule | U-panel | Balanced versatility, shape, and cost | Seam containment, filling behavior, SWL evidence |
Fine free-flowing powder | Circular or suitable lined construction | Fewer vertical body seams may reduce one group of sift paths | Fabric, bottom and top seams, closures, liner, leakage trial |
Fixed pallet or container footprint | Baffle | Better control of outward bulging | Filled dimensions, flow through baffles, discharge, test evidence |
Large graphics or controlled panel printing | Four-panel | Defined printing surfaces | Filled distortion, seam placement, barcode validation |
Cohesive or poor-flowing product | Unbaffled design may be the safer starting point | Simpler interior may reduce retention points | Outlet design, liner friction, discharge trial |
Dense mineral or abrasive aggregate | U-panel or engineered four-panel | Robust, configurable body and reinforcement options | Puncture, abrasion, bottom design, handling conditions |
Pellets with efficient container loading | Baffle or four-panel | More predictable footprint | Actual logistics gain, fill rate, corner filling |
Hygiene-sensitive ingredient | Application-specific circular, panel, or lined bag | No body style alone establishes hygiene | Facility controls, liner, seams, traceability, migration compliance |
Automated filling or discharge | Four-panel or baffle may offer dimensional consistency | Defined shape can help equipment alignment | Loop presentation, spout position, liner, filled tolerances |
This table identifies starting points, not universal selections.
Provide more than a general label such as “powder” or “granules.”
The supplier needs to know:
Bulk density
Target fill weight
Particle-size distribution
Percentage of fines
Flowability
Cohesion
Abrasiveness
Moisture sensitivity
Product temperature
Aeration during filling
Electrostatic characteristics
Hygiene or chemical-compatibility requirements
These properties determine how the product pushes against the panels, moves through baffle openings, escapes through seams, and flows toward the outlet.
State the dimensional limits imposed by:
Pallet size
Filling frame
Forklift aisle
Warehouse rack
Shipping container
Truck body
Conveyor
Discharge station
Customer handling equipment
Do not provide only nominal empty-bag dimensions. If footprint matters, specify maximum acceptable filled dimensions.
Required bag volume can be estimated from target fill weight and settled bulk density:
Required product volume = target fill weight ÷ settled bulk density
Allow for product variation, filling accuracy, settlement, and required headspace.
A baffle bag should not be assumed to hold more weight. It may help package the required volume within a more controlled external shape, but SWL remains a separate limit.
Choose the body style based on the problem that must be solved:
Reduce vertical body seams
Improve squareness
Control pallet overhang
Simplify manufacturing
Improve print placement
Reduce internal retention
Fit automated equipment
Improve container utilization
If the buyer cannot identify the objective, changing construction may add cost without improving performance.
After selecting a likely body style, review:
Base fabric
Coating
Seams
Lifting loops
Reinforcements
Top
Bottom
Liner
Baffle material and openings
Dimensions and tolerances
SWL
Safety factor
Electrostatic classification
Test evidence
The construction name is not a complete specification.
A production-representative sample should be tested using the intended product or a technically justified substitute.
Observe:
Filling time
Dust release
Air escape
Corner filling
Filled dimensions
Pallet overhang
Center of gravity
Loop access
Liner movement
Lifting behavior
Storage stability
Discharge time
Residual product
Bag and seam condition after handling
A visually square empty sample provides little evidence of filled performance.
The U-panel, circular, four-panel, or baffle label does not establish the bag’s SWL or safety factor.
Load is transferred through a system that includes:
Body fabric
Fabric orientation
Panel dimensions
Seams
Sewing thread
Lifting loops
Loop attachment
Reinforcements
Top and bottom components
Discharge opening
Baffle attachments
Manufacturing tolerances
Changing the body style changes parts of this load path.
When evaluating an FIBC bag manufacturer, buyers should ask how the proposed construction is connected to an approved drawing, material specification, test report, production controls, and change-notification process. A statement that one construction is “equivalent” to another is not enough.
The following assumptions should be avoided:
Circular is automatically stronger because it has fewer seams.
Four-panel is automatically stronger because it uses more panels.
U-panel is automatically safer because the bottom is part of the main fabric.
Baffle is automatically stronger because it contains additional fabric.
A square filled shape proves that the bag is safe to stack.
The same GSM produces the same strength in all constructions.
The same SWL can be transferred to a changed construction without review.
The complete design should be supported by the applicable testing and certification for its intended use.
A more controlled shape can improve load geometry, but it does not automatically authorize stacking.
Stacking decisions must consider:
Whether the bag was designed for stacking
Product compressibility
Filled-bag stability
Height-to-width relationship
Storage duration
Floor condition
Pallet strength
Support method
Environmental conditions
Applicable rules and instructions
A baffle bag may look more stable than a circular bag while still being unsuitable for unsupported stacking.
Shape retention and stacking approval are separate questions.
Quotations should not be compared using only construction name, dimensions, GSM, and price.
Ask each supplier to state:
Comparison Item | Information Required |
|---|---|
Base construction | U-panel, circular, four-panel, or another design |
Baffle status | None, four baffles, alternative arrangement, and base body style |
Body components | Number and orientation of panels |
Fabric | Base GSM, coating GSM, tensile and elongation requirements |
Seams | Seam type, thread, stitch construction, and sift-resistant method |
Baffles | Material, GSM, dimensions, openings, edge treatment, and attachment |
Dimensions | Empty dimensions, tolerances, and maximum filled footprint |
Lifting system | Loop type, material, dimensions, attachment, and reinforcement |
Top and bottom | Inlet, outlet, closures, covers, and reinforcements |
Liner | Material, thickness, shape, attachment, and compatibility with baffles |
Performance | SWL, safety factor, service category, and test evidence |
Manufacturing control | Approved drawing, lot traceability, inspection, and change notification |
Packing | Empty-bag weight, bale quantity, pallet quantity, and container quantity |
If Supplier A quotes a circular bag and Supplier B quotes a baffled four-panel bag, the price difference does not reveal which offer provides better value. The buyer must calculate whether the more expensive construction reduces filled-product transport, storage, leakage, or operating costs.
Consider a buyer packaging 900 kg of free-flowing polymer pellets.
The current circular bag meets the required SWL but bulges beyond the pallet, reducing the number of filled bags that fit across the shipping container. The buyer is considering U-panel, four-panel, and baffle alternatives.
The circular construction may remain the lowest-complexity solution. It has no vertical body seams and may perform well during filling and discharge.
Its main limitation is the uncontrolled footprint. If bulging continues to reduce the container loading pattern, a low unit price may not produce the lowest delivered cost.
A U-panel design may reduce some bulging while retaining a relatively straightforward interior. It could be sufficient if the pallet overhang is moderate and a perfect cube is unnecessary.
A filled trial is needed because the panels may still bow between the seams.
Four-panel construction may provide clearer corners and more consistent printing faces. It may improve pallet alignment without introducing internal baffles.
The buyer must account for additional external seams and confirm whether the filled footprint meets the transport limit.
A baffled construction may provide the best footprint control for the free-flowing pellets. If it restores the intended container loading pattern, the logistics savings may justify the higher unit cost.
The buyer must still verify that:
Pellets flow through the baffle openings
The liner, if used, does not bridge
The bag fills evenly
Discharge residue remains acceptable
Filled dimensions meet the limit
The complete construction has appropriate test evidence
The correct decision comes from the total operating result—not from a general ranking of bag styles.
“Baffle bag” does not state whether the outer body is circular, four-panel, U-panel-derived, or another construction.
Circular bags eliminate vertical body seams but still contain bottom, top, loop, spout, and accessory stitching.
Corner seams define the panels but do not make woven polypropylene rigid. Unbaffled faces can still bow outward.
A cheaper bag may increase pallet overhang, reduce container utilization, create leakage, or cause filling delays.
A square bag may look stable while failing to meet the actual lifting, stacking, containment, or discharge requirements.
Baffles that work with pellets may retain cohesive powders, moist products, fibers, flakes, or irregular particles.
Changing from circular to four-panel, adding baffles, moving loops, or altering panel dimensions can change the load path and operational behavior. The effect on design qualification must be reviewed.
Nominal empty dimensions do not control the space occupied by a filled flexible bag.
A useful RFQ should include:
Product name
Physical form
Bulk-density range
Particle-size distribution
Flowability
Cohesion
Abrasiveness
Moisture sensitivity
Product temperature
Electrostatic and hygiene requirements
Filling equipment
Filling-spout dimensions
Fill rate
Aeration level
Dust-control method
Densification or vibration
Bag-support method
Required filling time
Target and maximum fill weight
Pallet dimensions
Maximum filled footprint
Maximum filled height
Lifting equipment
Loop-access requirements
Storage method
Stacking conditions, if applicable
Truck or container loading pattern
Transport duration
Discharge equipment
Required outlet
Flow-control method
Acceptable discharge time
Acceptable residual product
Operator-access restrictions
Need for vibration or massage
Preferred base body style, if known
Purpose of the selected body style
Baffle requirement and purpose
Fabric and coating specification
Seam-containment requirement
Liner requirement
Top and bottom design
Lifting-loop arrangement
SWL and safety factor
Applicable standards
Sample and trial requirements
Production drawing
Component specification
Material certificates
Test reports
Golden or approved sample
Inspection plan
Lot traceability
Written change notification
This information allows the supplier to evaluate the construction against the actual process instead of recommending a bag based only on product name or payload.
U-panel, circular, four-panel, and baffle FIBCs solve different packaging problems.
A circular body removes vertical side seams and offers a relatively simple construction, but it commonly allows more sidewall bulging. A U-panel bag provides a practical balance of shape, versatility, and manufacturing efficiency. A four-panel bag creates more defined faces and corners but introduces additional external seams. A baffled design offers the greatest control over filled shape, although it also adds internal material, sewing, cost, and possible product-retention points.
No construction is universally strongest, safest, cleanest, or most economical.
The right selection depends on the product, filling process, discharge behavior, footprint limits, handling equipment, containment requirement, liner, and total logistics cost. Buyers should define the problem the body style is expected to solve, compare complete specifications, and verify the proposed design under representative operating conditions.
Jebic Packaging can evaluate product behavior, target payload, filling and discharge equipment, pallet dimensions, container layout, containment requirements, and liner needs before recommending a base construction. The final design should be documented through an approved drawing, controlled specification, representative sample, and applicable performance evidence.
No construction is automatically strongest. Strength depends on the complete design, including fabric, seams, loops, reinforcements, dimensions, top and bottom construction, manufacturing controls, and testing.
A basic circular construction may require fewer body-panel sewing operations, but it is not always the least expensive finished bag. Coating, sift-resistant seams, liners, loops, testing, order quantity, and packing can change the result.
No. Circular construction eliminates vertical body seams, but powder may still escape through the fabric, bottom and top seams, spout seams, closures, loop stitching, or damaged areas. Coating, sift-resistant construction, or a liner may still be required.
Not necessarily. Their vertical corner seams provide better panel definition, but the faces can still bulge. Where a tightly controlled footprint is required, a baffled construction may be more appropriate.
Not automatically. Baffles control shape; they do not increase the marked SWL by themselves. Any payload must remain within the rating of the complete tested design.
Yes. A tubular body can contain internal baffles, producing a circular-baffle construction. The filled bag may then retain a square profile with rounded corners.
Engineered combinations are possible, depending on the manufacturer’s construction method. The buyer should request the base body style, baffle arrangement, drawing, and supporting test evidence rather than relying on the general name.
Circular construction may reduce vertical body-seam leakage paths, but it is not automatically the best choice. Particle size, fabric permeability, coating, sift-resistant seams, closures, filling pressure, liner, and leakage acceptance criteria must also be considered.
A properly designed baffle bag normally provides the greatest control over filled footprint. The actual benefit should be confirmed using filled dimensions and the intended container loading pattern.
The change should not be treated as a simple substitution. Panel arrangement, seams, load transfer, filling behavior, filled dimensions, liner fit, and discharge can all change. The revised design should be reviewed, approved, and supported by appropriate evidence.
