PA6 nylon granules absorb moisture from the surrounding air, even during normal storage conditions. This makes packaging important for manufacturers and suppliers that need to maintain consistent material quality before processing. Without adequate protection, exposure to humid air during warehousing or transportation can increase the moisture content of the granules.

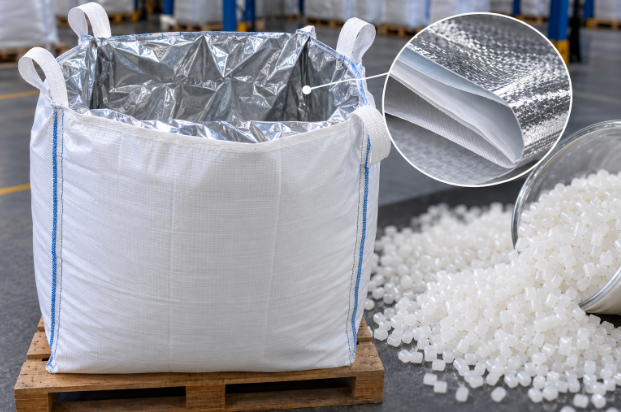

An aluminum foil FIBC bag helps address this problem by combining two protective components. The outer woven polypropylene (PP) bag provides the strength needed to hold and transport bulk quantities of PA6 granules, while a high-barrier aluminum foil liner limits exposure to moisture and other environmental factors.
Together, these components help preserve the condition of properly prepared PA6 throughout storage and transportation.
An aluminum foil FIBC protects PA6 nylon granules primarily by reducing the amount of moisture vapor that can enter the packaging during storage and transportation. Its woven polypropylene outer bag supports the bulk load, while the aluminum foil liner forms a high-barrier layer between the granules and the surrounding environment.
The two components perform different but complementary functions:
Outer woven PP bag: Provides structural strength for filling, lifting, stacking where permitted, and transporting bulk quantities of PA6.
Aluminum foil liner: Limits moisture-vapor transmission while also providing protection against light, oxygen, dust, and other external contaminants.
An aluminum foil lined FIBC bag is particularly useful when PA6 must maintain a controlled moisture level across extended storage periods or long shipping routes.
The table below shows common PA6 storage risks and how the packaging system helps manage them.
PA6 Storage Risk | How the Aluminum Foil FIBC Helps |
Moisture absorption | The foil liner reduces water-vapor ingress from humid air. |
Dust and dirt | The enclosed liner separates granules from external contaminants. |
Light exposure | The opaque aluminum layer blocks light from reaching the material. |
Oxygen exposure | The foil layer limits oxygen transmission through the liner material. |
Handling damage | The woven PP outer bag provides strength for bulk handling and lifting. |
Extended transportation | The barrier helps reduce environmental exposure throughout the shipment. |
These benefits depend on the liner remaining intact and properly sealed. The barrier material alone cannot protect the contents if moisture enters through an open filling spout, damaged seal, or puncture.
Polyamide 6, commonly called PA6 or nylon 6, is a hygroscopic engineering plastic. Hygroscopic materials naturally absorb moisture from the atmosphere, and PA6 can gradually take up water when exposed to humid air.
This characteristic matters because PA6 is widely used in injection molding, extrusion, and other manufacturing processes where material condition influences processing performance.
Even granules that leave production or drying equipment at an acceptable moisture level can absorb additional water if they remain exposed to the atmosphere.
Before melt processing, PA6 generally needs to meet a moisture specification established for its particular grade and application.
When the granules absorb additional water during storage or transportation, manufacturers may need to dry them again before processing.
Additional drying can increase energy consumption, preparation time, and operating costs. It can also complicate production planning when material arrives with an unexpectedly high moisture content.
High-barrier packaging helps limit this exposure, reducing the risk of unnecessary moisture gain before the granules reach their destination.
When inadequately dried PA6 enters processing equipment, the combination of moisture and high temperatures can create problems.
Water can contribute to hydrolytic degradation, a process in which polymer chains break down during melt processing. This can reduce molecular weight and affect the performance of the finished material.
Excess moisture may also contribute to defects such as bubbles, surface streaks, inconsistent melt behavior, and reduced mechanical performance.
Moisture additionally influences the physical properties of PA6, including dimensional behavior and mechanical characteristics. However, moisture conditioning of finished nylon parts is different from controlling the moisture content of granules before processing.
The purpose of protective packaging is to preserve the condition of properly prepared granules. An aluminum foil FIBC does not dry wet PA6 or remove water already absorbed by the material.
The protective liner inside an aluminum foil FIBC is typically made from multiple bonded layers rather than a single sheet of exposed aluminum.
Each layer serves a particular purpose, allowing the liner to combine moisture resistance with the flexibility and strength needed for industrial packaging.
The polymer layers support the thin aluminum foil and help the liner withstand normal packaging and handling conditions.
They also provide surfaces suitable for forming heat seals or other closures, depending on the liner design.
These layers matter because aluminum foil offers excellent barrier properties but can be damaged by excessive bending, punctures, or abrasion when it is not properly supported.
The aluminum layer acts as the primary barrier against water vapor.
Unlike ordinary woven PP fabric, a continuous, undamaged aluminum foil layer has extremely low water-vapor transmission. This makes it useful for packaging materials that need protection from humid external conditions.
When the liner is correctly manufactured, installed, and sealed, it substantially reduces the movement of moisture vapor from the surrounding air into the bag.
Actual performance depends on the foil thickness, laminate construction, sealing method, and condition of the finished package.
The innermost polymer layer provides the contact surface for the PA6 granules.
This means the granules do not need to contact the aluminum foil directly. The inner layer also supports sealing and helps protect the barrier structure during filling and discharge.
Together, the layers form a flexible enclosure that separates the PA6 granules from humid air outside the bag.
Coated FIBCs and aluminum foil lined FIBCs are not the same.
A coated FIBC uses a polymer coating or lamination on the woven PP fabric to improve containment and reduce permeability. This can be suitable for products that require better resistance to dust leakage or limited environmental exposure.
However, coating does not generally provide the same moisture-vapor barrier as a dedicated aluminum foil laminate.
The distinction is important when packaging materials with strict moisture requirements.
Understanding FIBC coating and lamination helps manufacturers assess the capabilities of different woven fabrics. For applications requiring a separate protective enclosure, different FIBC liners offer varying levels of moisture resistance, containment, and material compatibility.
The appropriate choice depends on the PA6 grade, required moisture protection, and expected storage conditions.
A high-barrier laminate can only provide effective protection when the completed packaging system remains properly closed and undamaged.
Although the foil layer can greatly reduce moisture-vapor transmission, moisture may still enter through openings or damaged areas.
Several factors deserve attention:
Filling openings: An improperly closed filling spout can allow humid air into the package.
Seals and closures: Weak, incomplete, or poorly positioned seals can create entry points for moisture.
Punctures: Sharp objects or handling equipment can damage the liner.
Damaged welds: Defective seams may compromise the barrier around the granules.
Abrasion: Repeated rubbing during transport can weaken parts of the liner.
Poor installation: An incorrectly positioned liner can become twisted, overstretched, or trapped during filling.
Handling damage: Rough movement, dropping, or contact with sharp surfaces can damage the outer bag and inner liner.
Moisture control is the main reason for choosing an aluminum foil FIBC for PA6 nylon granules. However, the liner can also protect against other environmental factors.
Aluminum foil is opaque, preventing light from passing through the barrier layer.
This can be useful for PA6 compounds containing light-sensitive pigments, additives, or modifiers. Reducing light exposure may help preserve the condition of formulations that require protection during storage.
The benefit depends on the characteristics of the particular PA6 compound rather than applying equally to every grade.
A continuous aluminum foil layer also provides strong resistance to oxygen transmission.
This helps reduce exposure to atmospheric oxygen when oxygen control is relevant to the stored compound or its additives.
However, the liner does not automatically remove oxygen already present inside the package. Applications requiring very low oxygen levels may need additional measures, such as controlled filling or gas flushing.
The liner creates a separate enclosure around the granules, helping prevent contact with dust, dirt, loose fibers, and other external contaminants.
It also prevents direct contact between the PA6 and the woven outer bag.
This added separation can be valuable for manufacturers handling compounds that require clean, consistent feedstock for downstream processing.
Effective contamination protection still depends on clean filling operations, suitable contact materials, and proper closure.
PA6 granules often pass through several locations before reaching their final processing facility. Each stage introduces different storage conditions and handling requirements.
A typical logistics chain may involve factory storage, warehouse handling, container loading, ocean transportation, port operations, and destination storage.
During factory storage, the liner limits moisture exposure after properly conditioned granules have been packed and sealed.
In warehouses, it helps reduce contact with humid air, particularly where environmental conditions change throughout the day.
During container transportation, the high-barrier liner remains useful as external temperatures and humidity levels fluctuate. This is especially relevant for ocean shipments that may encounter different climates along the route.
Ports and transshipment facilities can introduce further handling and exposure risks. The woven PP outer bag provides mechanical support, while the enclosed liner helps preserve the moisture barrier if the package remains intact.
At the destination, the liner continues protecting the granules until the package is opened for processing.
However, the bag cannot remove moisture that was already inside the granules or trapped in the package at the time of sealing.
Proper drying, controlled filling conditions, and suitable closures must therefore work together with the packaging.
Once the liner is opened, the granules may begin absorbing moisture from the surrounding atmosphere again. Material handling after opening should follow the PA6 supplier's recommendations.
Not every PA6 shipment requires aluminum foil packaging.
Some PA6 grades, shipping routes, and storage conditions may be adequately served by lower-barrier packaging. The decision should depend on the required moisture protection rather than assuming that the most expensive barrier is always necessary.
An aluminum foil FIBC becomes more relevant under the following conditions.
Strict moisture specifications: When PA6 must remain within a narrow moisture range, higher-barrier packaging can help reduce the risk of moisture gain before processing.
Long storage periods: Granules stored for weeks or months may benefit from additional protection against ongoing exposure to humid air.
Long-distance or ocean shipping: Extended transportation introduces changing environmental conditions and additional handling stages.
Humid climates: Tropical and other high-humidity environments can increase the importance of limiting moisture-vapor ingress.
High-value PA6 compounds: Specialized or reinforced compounds may justify additional packaging protection when moisture-related quality problems could be costly.
Moisture-sensitive additives: Certain compounded formulations may contain ingredients that require stronger environmental protection.
Customer packaging requirements: Buyers may specify particular barrier materials, moisture limits, or packaging configurations as part of their purchasing requirements.
A polyethylene liner or another lower-barrier option may be sufficient when the PA6 specification, shipment duration, and storage conditions permit it.
The best selection is based on the barrier performance required throughout the expected logistics chain.
Selecting the correct aluminum foil FIBC involves more than choosing a bag with a suitable load capacity.
The outer bag must support the required weight, while the liner must provide adequate protection under actual filling, storage, transportation, and discharge conditions.
Manufacturers and buyers should provide the following information when requesting packaging.
Specification | Why It Matters |
PA6 grade or compound | Identifies relevant material properties and packaging requirements. |
Granule weight per bag | Determines the quantity the FIBC must safely contain. |
Bulk density | Helps establish the appropriate bag volume and dimensions. |
FIBC dimensions | Ensures compatibility with filling equipment and storage arrangements. |
Safe Working Load (SWL) | Defines the rated load that the FIBC is designed to handle. |
Storage and transport duration | Helps establish the required period of barrier protection. |
Moisture-barrier performance | Sets expectations for water-vapor transmission and package protection. |
Filling method | Determines the appropriate filling opening and liner arrangement. |
Discharge method | Ensures compatibility with the customer's unloading equipment. |
Liner and sealing requirements | Helps maintain barrier integrity after filling. |
Vacuum or gas flushing | Identifies additional atmospheric-control requirements, where applicable. |
Cleanliness requirements | Defines suitable material-contact and contamination-control measures. |
Static-control requirements | Establishes whether special electrostatic safety features are necessary. |
These details allow the packaging configuration to be matched to the actual PA6 application.
For example, a manufacturer shipping large quantities of PA6 across several countries may need a different liner closure and handling arrangement from a supplier storing granules for a short period in a controlled warehouse.
Likewise, a high-value PA6 compound with strict moisture limits may justify a more carefully specified liner system than a product with less demanding storage requirements.
Properly designed custom FIBC bags can accommodate different dimensions, loading capacities, liner constructions, and filling or discharge arrangements.
The objective is to select a complete packaging system that provides suitable mechanical strength and barrier performance without unnecessary complexity.
PA6 nylon granules naturally absorb moisture from the surrounding atmosphere, making protective packaging important when material condition must be maintained during storage and transportation.
An aluminum foil FIBC addresses this challenge through two complementary components. The woven PP outer bag provides the strength required for bulk handling, while the multilayer aluminum foil liner limits moisture-vapor ingress and separates the granules from the external environment.
Effective protection also depends on properly prepared PA6, reliable sealing, careful handling, and an undamaged liner.
For manufacturers and suppliers seeking high-barrier bulk packaging, Jebic Packaging offers aluminum foil lined FIBC solutions that can be configured around specific PA6 storage, handling, and transportation requirements. Contact us to discuss the appropriate liner and bag specifications for an upcoming shipment.
An aluminum foil FIBC helps reduce new moisture ingress after properly conditioned PA6 granules have been packed and sealed. However, it cannot remove moisture already present in the granules or trapped inside the package. Proper material preparation and sealing remain essential.
PA6 is hygroscopic, meaning it naturally absorbs water from humid air. Its molecular structure contains polar amide groups that interact with water molecules. As a result, exposed PA6 granules can gradually gain moisture during storage and handling.
A polyethylene liner may be sufficient for some PA6 applications. Suitability depends on the required moisture level, storage duration, shipping conditions, liner thickness, and overall package design. Applications requiring stronger moisture protection may benefit from an aluminum foil laminate.
No. A coated FIBC has a coating applied to its woven fabric to improve containment and reduce permeability. An aluminum foil lined FIBC includes a separate multilayer, high-barrier liner that provides substantially greater resistance to moisture-vapor transmission when properly sealed.
Yes. Aluminum foil FIBCs can be suitable for long-distance PA6 shipments, including ocean transportation. The packaging should have an appropriate load rating, moisture-barrier specification, liner sealing method, and handling configuration for the actual shipping conditions.
